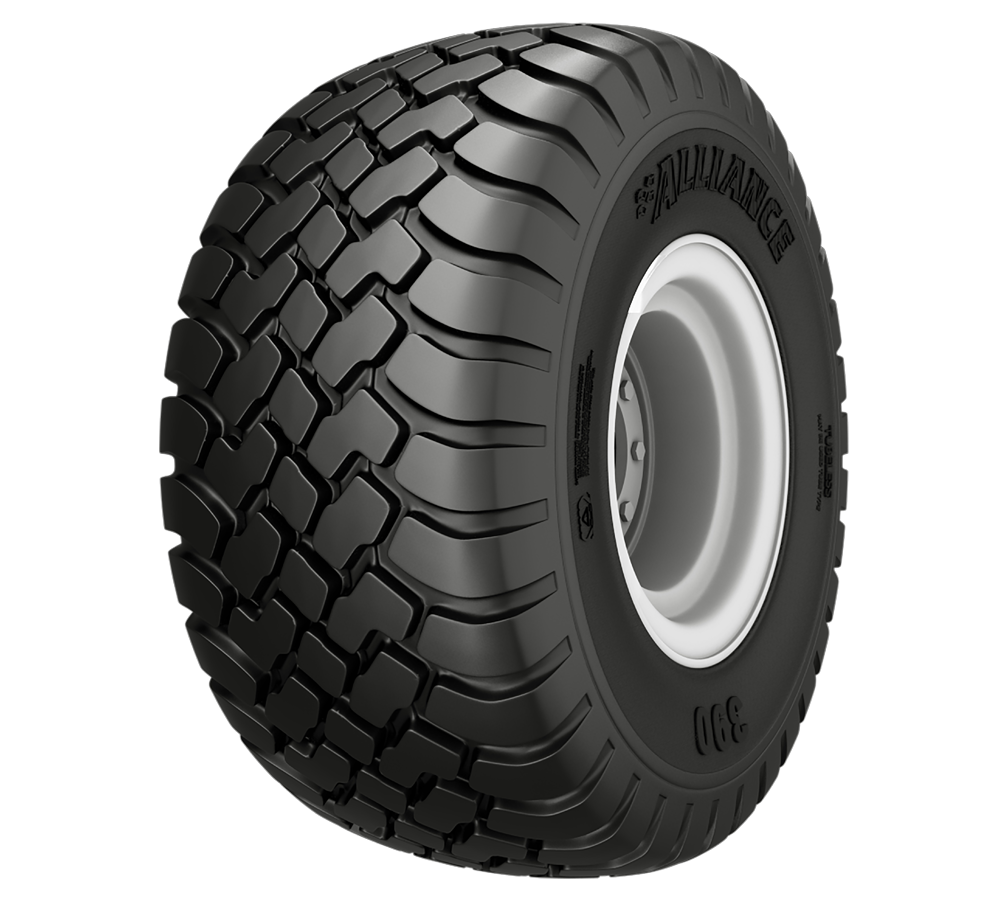

600/50R22.5 HD ALLIANCE 390 INDUSTRIAL HD 174A8/171B I-2 TL

Description

The Alliance 390 range of flotation radial tyres have been designed for use primarily on agricultural implements, fertilizer trucks, spreaders and trailers working in agricultural applications. Some sizes within the range are also suitable for use on excavators working in construction and industrial applications, replacing dual configurations. A block tread pattern provides for smooth handling on road surfaces and helping to protect to protect crops and soils in the field. Alliance 390 tyres are steel-belted and constructed with special compounds allowing them to run at high speeds. Some sizes within the range are available in a special HD (Heavy Duty) version with extra steel belts and a reinforced bead area helping to increase loadbility and durability.

Features

  • Flotation radial tyres for agricultural and construction/industrial applications.
  • Block tread pattern for crop protection and smooth handling on the road.
  • Steel-belted for high-load and high-speed capability.
  • Heavy-duty type.

Specification

Application
FLOTATION
Size
600/50R22.5 HD
Size Suffix
HEAVY DUTY
Brand
ALLIANCE
Pattern
390 INDUSTRIAL HD
Load/Speed Index
174A8/171B
TT/TL
TL
Construction
RADIAL
Nominal Section Width
600
Profile
50
Rim
22.5
TRA
I-2
Recommended Rim
20
Section Width
605 mm
Overall Diameter
1168 mm
Static Load Radius
533 mm
Rolling Circumference
3605 mm
Tread Depth
25.00 mm
Max Load (KG)/Speed (KM/H) 1
6700/40
Max Load (KG)/Speed (KM/H) 2
6150/50
Inflation Pressure Bar
6.50
Specification 1
STEEL BELTED
Specification 2
HEAVY DUTY
ECE 106
Yes
Warranty
10 YEARS
